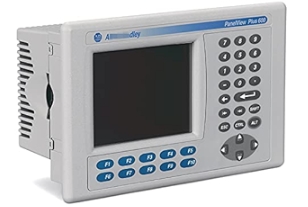

Allen Bradley 2711P-B6C20D8 PV Plus 6 600 Color Key Touch Terminal
The 2711P-B6C20D8 is a graphic operator terminal from Allen-Bradley. It is part of the PanelView Plus 6 600 operator terminal. It is a Human Machine Interface (HMI) device that is powered by an external supply voltage range of 18-30VDC with 5.7-inch Color active matrix, thin-film transistor (TFT) display.
Technical specifications for 2711P-B6C20D8:
Brand : Allen-Bradley
Display Size : 5.7 in.
Part Number/Catalog No. : 2711P-B6C20D8
Manufacturer : Rockwell Automation / Allen-Bradley
Product Family : PanelView Plus 6 Graphic Terminals
Operator Input : Touch / Keypad
Display Type : Color active-matrix TFT
Display Area : 115 x 86 mm (4.5 x 3.4 in.)
Resolution : 320 x 240, 18-bit color graphics
Touch interface : 8-wire analog resistive Actuation: 1 million presses; operating force: 10…110 g
Keypad Interface : Stainless-steel membrane; Numeric, navigation, and function keys
Terminal Memory : 512 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory)
Communication ports : Ethernet, RS-232, DH485, 2 USB host
Power Supply Input Voltage range : 18-30VDC
Power Consumption : 15 W max (0.6 A at 24V DC), 9 W typical (0.375 A at 24V DC)
Product Line : Panelview 6 Plus
Display Color : Color
Input Type : Keypad/Touchscreen
Communication : Ethernet and RS-232
Input Power : 18-30 VDC
Memory : 256 MB RAM
Backlight : Non-replaceable
Communication Cable : 2711-NC14
Shipping Weight : 6 lbs.
Shipping Dimensions : 14 x 11 x 8 in
Series : Series A and Series B
