Allen Bradley 2711P-B12C4D6 PowerFlex
The Allen-Bradley/Rockwell Automation 2711P-B12C4D6 terminal is an operator interface terminal that can control and monitor a variety of applications. It is a member of the Panelview Plus 1250 series. The 2711P-B12C4D6 operator interface terminal is DC-powered with an input voltage range from 18 to 32 Volts DC. Its input and control options are a keypad and a touchscreen. The touchscreen on the 2711P-B12C4D6 operator interface terminal is 12 inches wide and it supports color graphics.
Technical specifications for 2711P-B12C4D6
Manufacturer:Rockwell Automation
Brand:Allen-Bradley
Part Number/Catalog No.:2711P-B12C4D6
Product Line:Panelview Plus 1250
Display Size:12.1 inches
Input Type:Touchscreen and Keypad
Display Type:Full Color
Communication:Serial or Ethernet
Input Power:18-32 Volts DC
Memory:128 Megabytes
Shipping Dimensions1:1.12 x 16.36 x 2.17 inches
Product Lifecycle Status*:Discontinued/Obsolete
Description

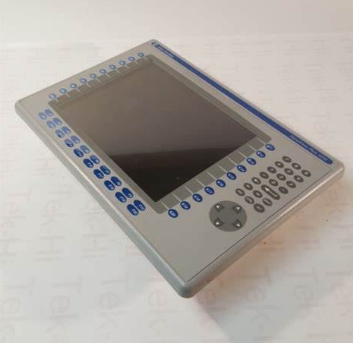

The Allen-Bradley 2711P-B12C4D6 is a Panelview Plus CE 1250 touchscreen/keypad 12-inch color operator interface device. It comes with standard communication options - Ethernet and RS-232 ports, and two USB ports. This is a DC-powered device and it has a CE Logic Module with 128 MB of RAM and with another 128 MB of flash memory. The Allen-Bradley 2711P-B12C4D6 features an analog resistive type of display with a 246 millimeters x 184 millimeters (9.7 inches x 7.2 inches) sized display area. It has 800 x 600 graphics resolution. Users can input their commands over the touchscreen or over the 40 keypad function keys denoted with “F” and “K” letters. It is up to the programmer to determine the functions for these keys. There are editable labels available for these function keys. There is an add-on to be installed if users want to inspect their HMI applications over the internet.
FAQ & Contact:
Q: Are you a trading company or a manufacturer?
A: We are a trading company.
Q: What is your lead time?
A: It usually takes one to three days if we have it in stock. If the goods are not in stock, you need to negotiate.
Q: Does your company provide samples? Is it free or do you charge extra?
A: It depends on the goods you need and the quantity you order.
Q: What are your terms of payment?
A: 100% T/T before shipping. If the quantity is large, we can negotiate.
