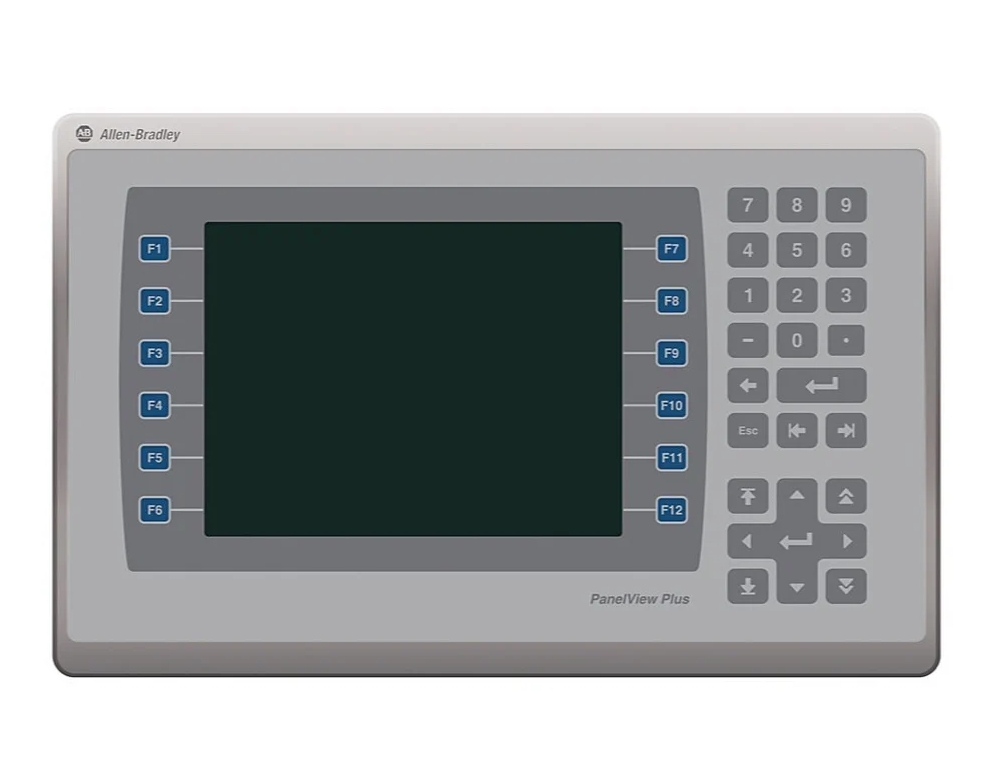

Allen Bradley 2711P-B10C22D9P PanelView Plus 7 Graphic Terminal
PanelView Plus 7 Performance Terminal, Keypad/TouchScreen,10 SVGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model
PanelView Plus 7 Graphic Terminal
The Allen-Bradley 2711P-B10C22D9P is a PanelView Plus 7 Performance operator terminal. This Human Machine Interface (HMI) device is powered by an external supply voltage of 18-32VDC. It has a 10.4-inch Color active matrix, thin-film transistor (TFT) LCD screen with embedded Touchscreen and keypad operator interfaces. It has a variety of communication ports such as, Two (2) Ethernet and Three (3) USB ports.
Technical specifcations for 2711P-B10C22D9F
Brand: Allen-Bradley
Display size: 10.1 in.
Product Family: PanelView Plus 7 Performance terminals
Operator Input: Touch / Keypad
Display Type: Color active-matrixTFT
Display Area: 196x118 mm(7.7x4.6 in.)
Resolution: 800x480 WVGA.18-bit color graphics
Touch: Analog resistive Actuation: 1 million presses; operating force: 100 g
System Memory: 512 RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory)
Communication ports: Two (2) Ethernet, Three (3) usB host
Input Voltage range: 18-30 VDC
Power Consumption: 50 w max (2.1 A at 24V DC)
Backlight: White light-emitting diode, solid state Life: 50,000 h min at 40 ℃ (104 ℉) to half-brightness, backlight is not replaceable
Product Line: Panelview Plus 7
Input Type: Touchscreen/Keypad
Memory: 512 Mb
input Voltage: 24 VDC
Backlight: LED
Weight: 5.69 LBS
