Allen-Bradley 2711-B5A10 Monochrome Touch Screen Keypad Display

Allen-Bradley 2711-B5A10  Monochrome Touch Screen Keypad Display

Description For 2711-B5A10

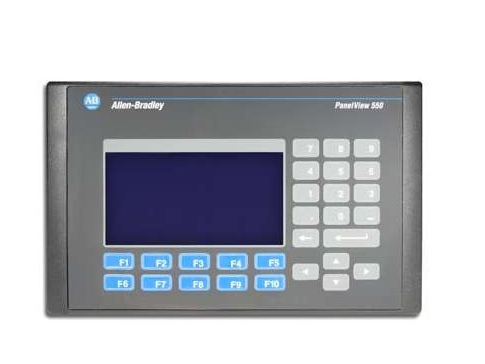

The Allen-Bradley 2711-B5A10 is an Allen-Bradley PanelView 550 Standard Operator Terminal. This operator terminal has a 5.5-inch display with embedded DeviceNet port and RS232 communication port. It has ten (10) Function keys and a Touchscreen operator interface.

The PanelView 550 series is an obsolete family of Allen Bradley PanelView Standard operator Terminal one of these, the 2711-B5A10, is an AC-powered device which features, dual-input functionality, such as a touchscreen input and a keypad. The keypad on this unit has a numeric keypad and arrow keys, along with its 10-key function keypad, marked F1 through F10. These keys feature a domed-membrane effect and made of a stainless-steel frame. The touchscreen on the 2711-B5A10 also functions as the output display with a 5.5-inch diagonal length. This monochrome blue LCD screen has an expected operation of 1-million-press actuation, allowing for extensive use. The backlight in this module can stay active for around 100,000 hours before becoming unserviceable. The PanelBuilder32 software, which runs on the 2711-B5A10, is an easily-navigated software, often used on a personal computer as well.

This module communicates using built-in ports such as the RS-232 Printer port, and the DeviceNet communication port. The 2711-B5A10 usually consumes close to 0.76 Amperes at a 24 Volt DC power (18 Watts) while being powered by an input voltage between 18 and 30 Volts DC. The 2711-B5A10 also dissipates around 20 Watts of power, or 69 BTU per hour. Generally, the 2711-B5A10 can withstand a shock of up to 30 g while the module is operating; when non-operational, the 2711-B5A10 can handle up to 50 G. Its temperature rating fluctuate between 0 to 55 degrees Celsius while operating (32 to 131 degrees Fahrenheit) and -20 to 70 degrees Celsius while not operational (-4 to 158 degrees Celsius). To avoid early deterioration of this PanelView, mount it at an altitude that is or lower than or equal to 6,561 feet (2000 meters).

Product specification

Brand Name ：original

Model Number :2711-B5A10

Condition： New

Warranty: 1-2 Years

Function: Automation Control

Payment term： Trade Assurance TT \Western Union

Shipping Term :DHL Fedex TNT EMS UPS

Service： Technical Support

Application :Industrial Automation

Package： Carton Box

Original factory:Allen-Bradley 2711-B5A10 In stock best price

Our Services

1、 All our products are new and original, and of good quality.

2、  Our prices are very competitive.

3、  We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.

4、  All inquiries will be valued and will reply in 24 hours.

5、  Fast shipping, and good after-sale service

6、  We will ship the items within 1-3 working days after the payment is received.

7、 Good package to protect the products.
