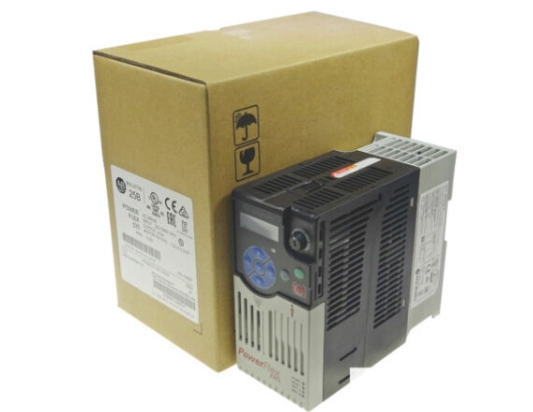

Allen Bradley 25A-D4P0N104 AC Drive
The 25A-D4P0N104 is a PowerFlex 523 Adjustable Frequency AC Drive from Allen-Bradley. This drive operates when supplied with voltage of 480VAC, 3-Phase. It delivers output power of 1.5 kW or 2.0 HP for both normal and heavy-duty operation. The drive’s output Current is 4.0 Amperes with an IP20 NEMA / Open rated enclosure.
Product Details
BASE DRIVE INFORMATION
Bulletin Number： PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety
Voltage Class： 380...480V AC, 3 Phase
Output Current： 4 Amps
Enclosure Type： IP20 NEMA / Open Type
Frame Size： Frame A
Interface Module： Standard
EMC Filtering Options： No Filter
ACCESSORIES
Circuit Protection： No Circuit Protection
Technical specifications for 25A-D4P0N104
Brand： Allen-Bradley
Part Number/Catalog No.： 25A-D4P0N104
Output Current： 4.0 A
Manufacturer： Rockwell Automation / Allen-Bradley
Input Voltage: 380-480 VAC
Input Phase: 3-Phase
Output Voltage: 0-460VAC
Output Power: 1.5 kW or 2.0 HP
I/O: Discrete Inputs: Five (5) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA
Installation: Panel Mount / DIN Rail
Zero Stacking: Supported
Enclosure Rating: IP20 / NEMA UL Type Open
Control Method: Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control, and Permanent Magnet motor control.
PointStop Technology: Integrated
Integrated safety: Safe-Torque Off (STO) functionality
Built-in communication port: RS485
Series： PowerFlex 523
Voltage： Three Phase, 480 VAC
Enclosure Type： IP20 NEMA / Open Type
Interface Module： Standard
Frame Size： Frame A
EMC Filtering Option： No Filtering
UPC： 885630702506
