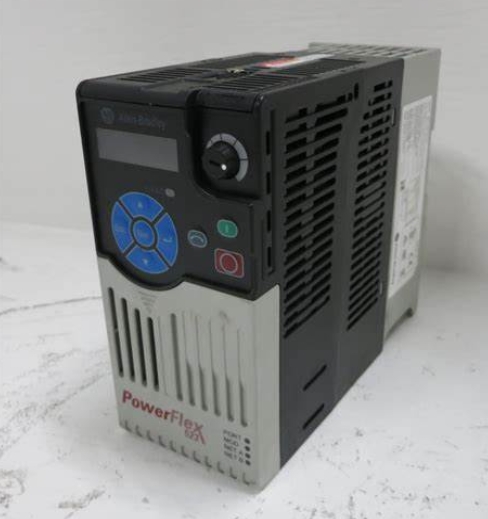

Allen Bradley 25A-D2P3N114 AC Drive
The 25A-D2P3N114 is an adjustable frequency AC drive. This belongs to the PowerFlex 523 drives by Allen-Bradley. It features an input voltage rating of 380-480 VAC, 3-Phase, and an input current of 3.2 Amperes. It has an output voltage of 0-460 VAC, 3-Phase; This drive has an output current and power of 2.3 Amperes and 1.0 HP or 0.75 kW for Heavy and normal duty. This drive is an A-frame drive with a built-in'''
Product Details
BASE DRIVE INFORMATION
Bulletin Number: PowerFlex 523 AC Drive
Voltage Class: 380...480V AC, 3 Phase
Output Current: 2.3 Amps
Enclosure Type: IP20 NEMA / Open Type
Frame Size: Frame A
Interface Module: Standard
EMC Filtering Options: No Filter
ACCESSORIES
Circuit Protection: No Circuit Protection
Technical specifications for 25A-D2P3N114
Manufacturer Rockwell Automation
Brand: Allen-Bradley
Part Number/Catalog No.: 25A-D2P3N114
Manufacturer: Allen Bradley / Rockwell Automation
Series: PowerFlex 523
Drive Category: PowerFlex 523 Adjustable Frequency AC Drive
Voltage: Three Phase, 480 VAC
Part number: 25A-D2P3N114
Output Current: 2.3 Amperes
Input Voltage: 380-480 VAC
Enclosure Type: IP20 NEMA / Open Type
Input phase: 3-Phase
Interface Module: Standard
Output Voltage: 0-460VAC
Frame Size: Frame A
Output Phase: 3-Phase
EMC Filtering Option: Single
Output Power :1.0 HP or 0.75 kW; Normal and Heavy Duty
Output current: 1.4 A
Discrete Input: Five (5) digital inputs
Analog input: One (1) analog input
Discrete output: One (1) relay output
Analog output One :(1) analog output (requires Series B hardware)
Braking: Built-in IGBT
EMC Filter: None Installed
Enclosure :IP20 NEMA/Open
Frame: A
Communication ports: RS485
Control Method: Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), SVC with economizer
