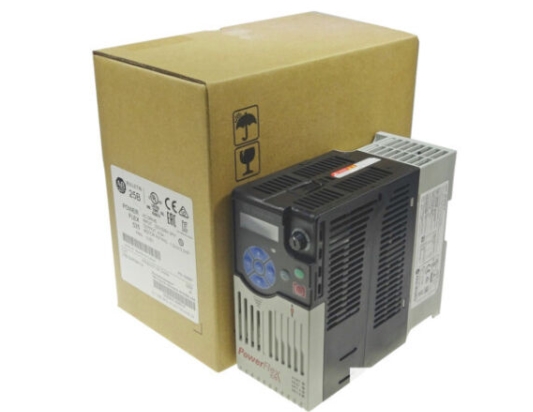

Allen Bradley 25A-D030N104 AC Drive
The Allen-Bradley 25A-D030N104 AC drive has been designed and manufactured as a member of the Allen-Bradley/Rockwell Automation PowerFlex 523 drive series. Its 3-phase input voltage range is from 380 to 480 Volts AC and its 3-phase output voltage range is from 0 to 460 Volts AC. The 25A-D030N104 AC drive also has an operating input voltage range of 323 to 528 Volts AC. It can support standard
Product Details
BASE DRIVE INFORMATION
Bulletin Number: PowerFlex 523 AC Drive
Voltage Class: 380...480V AC, 3 Phase
Output Current: 30 Amps
Enclosure Type: IP20 NEMA / Open Type
Frame Size: Frame D
Interface Module: Standard
EMC Filtering Options: No Filter
Technical specifications for 25A-D030N104
Brand: Allen-Bradley
Part Number/Catalog No.: 25A-D030N104
Output Current: 30 A
Manufacturer :Rockwell Automation / Allen-Bradley
Input Voltage: 323-528 VAC
Input Phase: 3-Phase
Output Voltage: 0-460VAC
Output Power: 20.0 HP (15.0 kW) Normal Duty; 15.0 HP (11.0 kW) Heavy Duty;
Embedded I/O: Discrete Inputs: Five (5) Inputs Discrete Outputs: One (1) Form C Contacts Analog Input: One (1) Analog Input Analog output: One (1) analog output
Installation: Panel Mount
Enclosure Rating: IP20 / NEMA UL Open Type
Frame: D
Control Method: Volts / Hertz Control; Sensorless Vector Control; Sensorless Vector Economizer
Built-in communication port: RS485
Integrated Safety: Safe-Torque Off (STO) functionality
Human Interface Module (HIM): Yes; Standard HIM
Compatible Controllers: CompactLogix; GuardLogix; ControlLogix
Series: PowerFlex 523
Voltage: Three Phase, 480 VAC
Enclosure Type: IP20 NEMA / Open Type
Interface Module: Standard
Frame Size: Frame D
EMC Filtering Option:No Filtering
