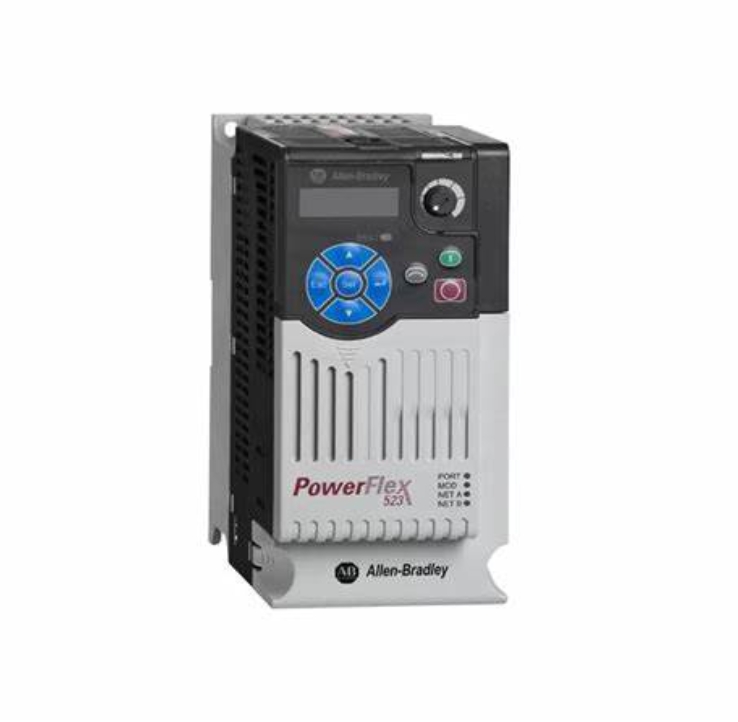

Allen Bradley 25A-A2P5N104 AC Drive
The 25A-A2P5N104 is an adjustable frequency AC drive. This belongs to the PowerFlex 523 drives by Allen-Bradley. It features an input voltage rating of 200-240 VAC, 1-Phase, and an input current of 6.5 Amperes. It has an output voltage of 0-230 VAC, 3-Phase; This drive has an output current and power of 2.5 Amperes and 0.5 HP or 0.4 kW for Heavy and normal duty. This drive is an A-frame drive with a built-in
Product Details
BASE DRIVE INFORMATION
Bulletin Number: PowerFlex 523 AC Drive
Voltage Class: 200...240V AC, 1 Phase
Output Current: 2.5 Amps
Enclosure Type: IP20 NEMA / Open Type
Frame Size: Frame A
Interface Module: Standard
EMC Filtering Options: No Filter
ACCESSORIES
Circuit Protection: No Circuit Protection
Technical specifications for 25A-A2P5N104
Manufacturer: Rockwell Automation
Brand: Allen-Bradley
Part Number/Catalog No. 25A-A2P5N104
Manufacturer: Allen Bradley / Rockwell Automation
Series: PowerFlex 523
Drive Category: PowerFlex 523 Adjustable Frequency AC Drive
Voltage: One Phase, 240 VAC
Part number: 25A-A2P5N104
Output Current: 2.5 Amperes
Input Voltage: 200-240 VAC
Enclosure Type: IP20 NEMA / Open Type
Input phase: 1-Phase
Interface Module Standard
Output Voltage: 0-230VAC
Frame Size: Frame A
Output Phase: 3-Phase
EMC Filtering Option: No Filtering
Output Power 0.4 kW / 0.5 HP; Normal and Heavy Duty
Output current: 2.5 A
Discrete Input: Five (5) digital inputs
Analog input: One (1) analog input
Discrete output: One (1) relay output
Analog output: One (1) analog output (requires Series B hardware)
Braking: Built-in IGBT
EMC Filter: None Installed
Enclosure IP20 NEMA/Open
Frame A
Communication ports: RS485
Control Method: Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), SVC with economize
