Allen Bradley 22F-D4P2N103 PowerFlex

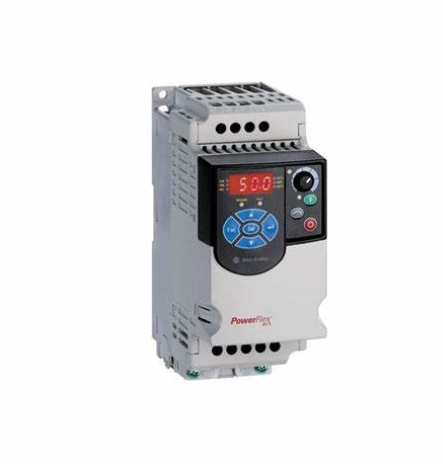

The 22F-D4P2N103 is an Adjustable Frequency AC drive from the PowerFlex 4M produc family. This drive is manufactured by Allen-Bradley that features an input voltage range of 380-480VAC, 3-phase. It delivers an output voltage range of 0-460VAC, 3-Phase, with applicable motor current of 4.2 A and Power of 1.5 kW (2.0 HP). This drive come with an integra RS485 communication interface.
Specifications
BrandAllen-Bradley
Part Number/Catalog No.22F-D4P2N103
ManufacturerRockwell Automation / Allen-Bradley
Input Voltage:380-480VAC
Input Phase:3-Phase
Input Current:6.0 A
Output Voltage:0-460VAC
Output Current:4.2 A
Output Power:1.5 kW (2.0 HP
Output frequency:0-400 Hz
Efficiency:0.975
I/O:Discrete Inputs: Five (5) Sink / Source Discrete Outputs: One (1) Form C Contacts Analog Input: One (1) Analog Input 0-10VDC; 0- 20mA
Installation:Panel Mount
Enclosure Rating:IP20 / NEMA UL Open Type
Frame:B
Control Method:Volts / Hertz Control performance
Built-in communication port:RS485
Optional communication protocols:BacNet; LonWorks; ProfiBus; Ethernet; DeviceNet; ControlNet
Product Line:Powerflex 4M
Amperage:4.2
Wattage:1.5 Kilowatt
Enclosure Type:Open- IP20
Input Power:480 Volts- Alternating Current
Phase:Three-Phase
Filter:Without CE Compliant Filter
Horsepower:2 Horsepower
Product:
Part #:22F-D4P2N103
Category:Drives
Subcategory:Drive
Weight:2.50 lbs
Power (KW):1.5 KW
Power (HP):2 HP
Phases:3 PHASE
Current Rating:4.2 AMP
Voltage:480 VAC
Product Type:AC DRIVE
Frequency Type:ADJUSTABLE FREQUENCY
Keypad:FIXED KEYPAD
Filter:No
Brake:NO BRAKE IGBT
Enclosure:PANEL MOUNT - IP 20 NEMA TYPE OPEN
Product Family:POWERFLEX 4M
