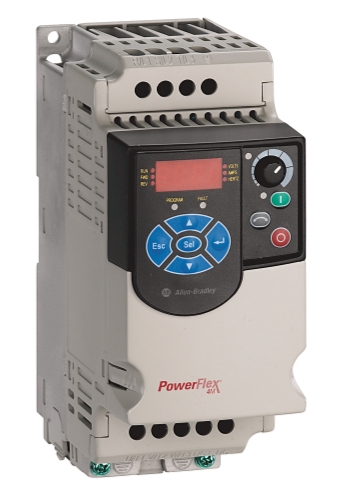

Allen Bradley 22F-D4P2N103 PowerFlex 4M- 1.5 kW (2 HP) AC Drive
PowerFlex 4M- 1.5 kW (2 HP) AC Drive
The 22F-D4P2N103 is an Adjustable Frequency AC drive from the PowerFlex 4M produc family. This drive is manufactured by Allen-Bradley that features an input voltage range of 380-480VAC, 3-phase. It delivers an output voltage range of 0-460VAC, 3-Phase, with applicable motor current of 4.2 A and Power of 1.5 kW (2.0 HP). This drive come with an integra RS485 communication interface.
Manufacturer : Rockwell Automation
Brand : Allen-Bradley
Part Number/Catalog No. : 22F-D4P2N103
Input Voltage : 380-480VAC
Input Phase : 3-Phase
Input Current : 6.0 A
Output Voltage : 0-460VAC
Output Current : 4.2 A
Output Power : 1.5 kW (2.0 HP
Output frequency : 0-400 Hz
Efficiency : 0.975
I/O: Discrete Inputs : Five (5) Sink / Source Discrete Outputs: One (1) Form C Contacts Analog Input: One (1) Analog Input 0-10VDC; 0- 20mA
Installation : Panel Mount
Enclosure Rating : IP20 / NEMA UL Open Type
Frame : B
Control Method : Volts / Hertz Control performance
Built-in communication port : RS485
Optional communication protocols : BacNet; LonWorks; ProfiBus; Ethernet; DeviceNet; ControlNet
Product Line : Powerflex 4M
Amperage : 4.2
Wattage : 1.5 Kilowatt
Enclosure Type : Open- IP20
Input Power : 480 Volts- Alternating Current
Phase : Three-Phase
Filter : Without CE Compliant Filter
Horsepower : 2 Horsepower
