22B-D4P0N104
22B-D4P0N104

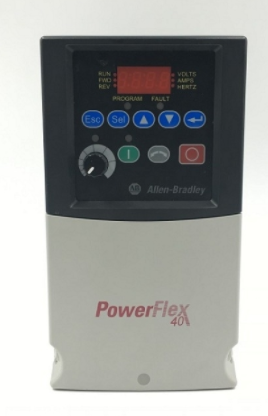

Allen-Bradley 22B-D4P0N104 Frequency Drive

Allen-Bradley22B-D4P0N104 PowerFlex 40 Drive is a 2 Hp VFD

  • Item no.:

    22B-D4P0N104
  • Payment:

    T/T,Western Union
  • Market price:

    $66
  • Product origin:

    USA
  • Color:

    New and original
  • Goods stock:

    30
  • Lead Time:

    In stock

Allen-Bradley22B-D4P0N104 PowerFlex 40 Drive is a 2 Hp VFD

Description For 22B-D4P0N104

 This Allen-Bradley PowerFlex 40 Drive is a 2 Hp VFD.  It has a voltage rating of 380-480V and a 4.0 Amp output rating.  This PowerFlex 40 AC Drive comes with a fixed keypad and is not filtered.

The 22B-D4P0N104 is a PowerFlex variable drive that belongs to the PowerFlex 40 series that is manufactured by Allen-Bradley (Rockwell Automation). The 22B-D4P0N104 PowerFlex variable drive has been widely used in several industries due to its wide range of options and specifications. This drive is able to operate with a 3-phase voltage rating of 480 Volts AC and an amperage rating of 4 Amps and an output power rating of 2 Horsepower. The 22B-D4P0N104 PowerFlex variable drive comes with an open enclosure that is rated IP20 and that enables the users to panel mount the drive. At the same time, the enclosure provides protection to both the wiring and to the different connections of the drive. With simple programming, it can be installed and configured to provide motor control. The 22B-D4P0N104 drive has functions that simplify control schemes and reduce hardware design costs. The relay-controlled timer function activates with a programmed Timer Start and input. The 22B-D4P0N104’s counter function is another output that is activated by a programmed digital input.

The 22B-D4P0N104 PowerFlex variable drive’s basic logic function performs Boolean logic and the step logic function allows the drive to work as an independent position controller by using preset settings for specific acceleration/deceleration, direction, and speed functions. The sensorless vector control feature makes the 22B-D4P0N104 a high-performing drive. This control feature provides high levels of torque for excellent speed and current regulation, linear acceleration, and digital input response time and repeatability. At a 100% load, the motor operates at synchronous speed and its Autotune feature provides a method for setting the flux current and IR voltage drop which affect the sensorless vector control performance. The 22B-D4P0N104 PowerFlex variable drive provides a fixed keypad as a human-machine interface, and it is through this keypad that the device operators and supervisors will be able to modify or input new variables into the system. This drive is a standard drive that does not include filters. The 22B-D4P0N104 PowerFlex variable drive comes with a cooling fan integrated into it. When mounting the drive, the users need to make sure that this cooling fan is not blocked by any object or by any other equipment that is located nearby. It is important and recommended to install the drive in a clean and safe location without any corrosive chemicals or materials because this will help the drive operate safely and at the same time it will preserve and extend its operating life. The 22B-D4P0N104 PowerFlex variable drive is ideal for operating with 3-phase applications.



Allen Bradley's 1768-PB3 is a CompactLogix power supply. The 1768-PB3 is powered through the CompactLogix backplane. By using this backplane, the 1768-PB3 power supply is compatible with the 1768 and 1769 controllers, input/output modules, and power supply

Product specification

Model Number: 22B-D4P0N104

Product name:22B-D4P0N104

Payment :Paypal\TT\Western Union\ Trade Assurance

MOQ :1PCS

Package :Carton Package

Shipping By DHL\UPS\Fedex\EMS\TNT\Aramex

Service :24 Hours Online Service

Lead time :5-7 Days

Condition :100% Original





Original factory:Allen-Bradley22B-D4P0N104 In stock best price



Shipping term: TNT DHL FEDEX UPS
Warranty:  12 Months
Condition:   Original & new



Our Main Products



Rockwell:Allen-Bradley22B-D4P0N104

1) ControlLogix 1756 series controller

2) CompactLogix 1769 series controller

3) SLC 500 1747 1746 Series Controller

4) PLC-5 1771 1785 series controller

5) ProSoft MVI69/PS69/MVI56/MV194/MV171/MV146/3150

6) ICS TRIPLEX trusted system


FAQ For :Allen-Bradley22B-D4P0N104
· Q:Do you provide warranty for the goods?

· A:Yes, we provide one year warranty for all the goods from us.



· Q: Could you provide technology support?

· A: We're in this field more than 15 years. If there's any problem, please  contact with us,we'll provide suggestion from our engineer to help you solve problem.



· Q: Does Online Union keeps goods in stock or only trading?

· A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.



Packing & Delivery



1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.



Our Services



1、 All our products are new and original, and of good quality.

2、  Our prices are very competitive.

3、  We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.

4、  All inquiries will be valued and will reply in 24 hours.

5、  Fast shipping, and good after-sale service

6、  We will ship the items within 1-3 working days after the payment is received.

7、 Good package to protect the products.
