Allen Bradley 22B-D1P4N104 PowerFlex

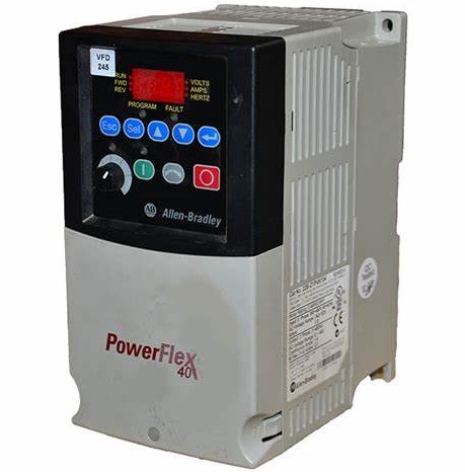

The Allen-Bradley 22B-D1P4N104 is a PowerFlex 40 Adjustable Frequency AC Drive. This drive has a supply voltage requirement of 342-528 VAC, 3-phase. It has an output power output rating of 0.4 kW or 0.5 HP and Current of 1.4 Amperes.
Specifications
Product Line:Powerflex 525
Enclosure:Panel Mount - IP20, NEMA/UL Type Open
Input Type:Keypad
Communication:RS-485
Filter:No CE Compliant Filter
Part Number/Catalog No.:22B-D1P4N104
Brand:Allen-Bradley
Manufacturer:Rockwell Automation
Output Powe:r0.5 HP / 0.4 kW
Brake:included
I/O Terminal:Discrete Inputs: 3 fixed for START/STOP/REV; 4 Fully Programmble Discrete Outputs: 4 fully programmable; Analog Input: 2 0…10V or 4…20 mA (unipolar) 1 +/- 100V (bipolar) Discrete Output: 1 - N.O/N.C. dry contact; 2 Digital / Optocoupler Analog Output: 1 0-10VDC / 4-20 mA
Voltage:480AC Volts
HP:0.5 Horsepower
Amperage:1.4 A
Phase:3 Phase
Product:
Part #:22B-D1P4N104
Category:Drives
Subcategory:Drive
Weight:3.55 lbs
Power (KW):0.4 KW
Power (HP):0.5 HP
Current Rating:1.4 AMP
Phases:3 PHASE
Voltage:480 VAC
Product Type:AC DRIVE
Frequency Type:ADJUSTABLE FREQUENCY
Keypad:FIXED KEYPAD
Filtered:No
Enclosure:PANEL MOUNT - IP 20 NEMA TYPE OPEN
Product Family:POWERFLEX 40
Brake:STANDARD BRAKE
