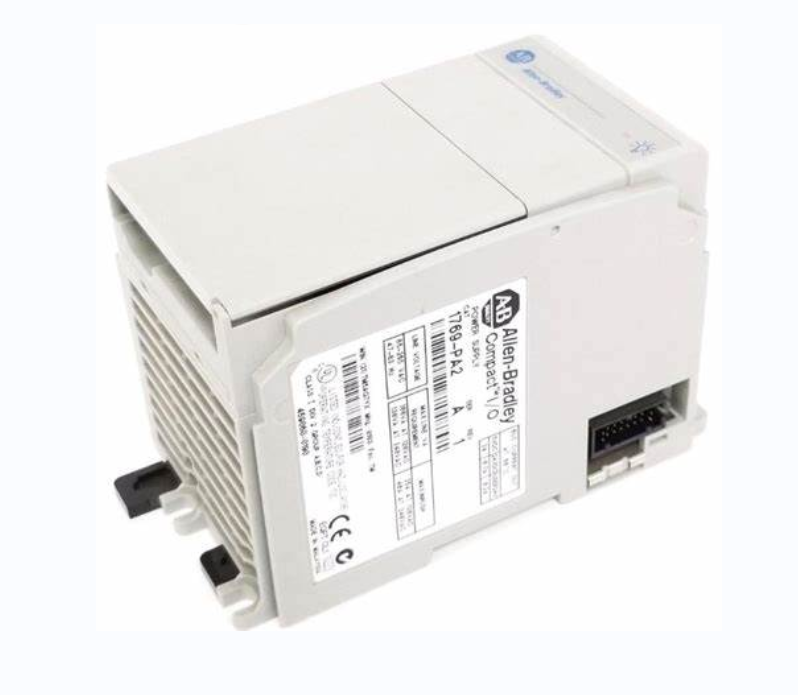

Allen-Bradley 1769-PA2 CompactLogix AC Power Supply

Allen-Bradley 1769-PA2 CompactLogix AC Power Supply

Description For 1769-PA2

The Allen-Bradley 1769-PA2 is a 1769 CompactLogix Power Supply. This Power Supply has an input voltage range of 85 - 265VAC, operating at a nominal input of 120V/220V AC. It has a Current capacity of 2.0A at 5.0V and 0.8A at 24VDC.

The Allen-Bradley 1769-PA2 is a CompactLogix I/O power supply. This power supply is primarily used as I/O power supply, installed in a CompactLogix assembly or to an expansion I/O bank. It provides power to the modules attached on both direction of the module installed to a system in consideration to the required Power Supply distance rating.

When installed along a CompactLogix controller assembly, Compact I/O modules may be installed on both sides of the power supply as the power supply can supply power on both directions as well as the Power supply distance rating may also be counted in both ways. Up to Eight (8) 1769 modules may be installed on both sides of this power supply.

Required input voltage range for this power supply is 85-265VAC with frequency of 47-63 Hz. It has a current capacity of 2.0A at 5VDC and 0.8A at 24VDC. This module is equipped with an internal fuse which may be replaced with Wickmann 19195-3.15A or Littelfuse 02183.15MXP.

This power supply has a dimension of 118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.) and an approximate weight of 525 g (1.16 lb). As standard to CompactLogix platform, this power supply module also support installation to a DIN or directly to a mounting plate.

This power supply is UL Listed for Class 1, Division 2 Group A,B,C,D Hazardous Locations, certified for U.S. and Canada. See UL File E10314, Australian Radiocommunications Act, compliant with: AS/NZS CISPR 11; Industrial Emissions and European Union 2004/108/EC EMC Directive compliant.

Product specification

Place of Origin: China

Model Number :1769-PA2 /1769-L33ER

Condition :100% Original

Product name: plc

type :1769-PA2 /1769-L33ER

Warranty :1 Year

Shipping term: TNT DHL FEDEX EMS UPS

Original factory:Allen-Bradley1769-PA2 In stock best price
