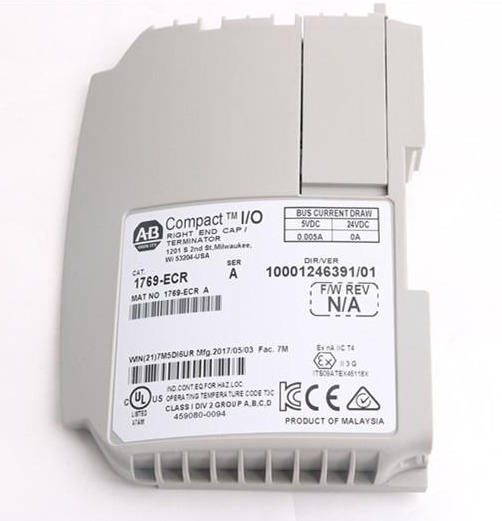

Allen Bradley 1769-ECR Terminator Right End Cap

Allen Bradley1769-ECR Right End Cap (ECR) module

Item no.:
1769-ECR
Payment:
T/T,Western Union
Market price:
$66
Product origin:
USA
Color:
New and original
Goods stock:
30
Lead Time:
In stock

Inquiry now

product introduction

Allen Bradley1769-ECR Right End Cap (ECR) module

Description For 1769-ECR

The 1769-ECR is a Right End Cap (ECR) module that is used with the CompactLogix product family. This module is installed at the right sight of the last module of a CompactLogix assembly. It has a current draw of 5 mA at 5.1 VDC, weighs 130 g (0.286 lb) with open style enclosure.

The Allen-Bradley 1769-ECR is a Right End Cap (ECR) module that is used with the CompactLogix controller series. This module functions as a bus terminator, terminating the FlexBus circuitry, signaling the end of the CompactLogix assembly. This module is necessary to qualify the CompactLogix configuration. The 1769-ECR features a current draw of 5 mA at 5.1 VDC. It has an operating altitude of 2000 m or 6562 ft and approximately weighs 130 grams or 0.286 lb. It has an open style enclosure rating, an operating temperature of 0 -60 °C or 32-140 °F) while the storage temperature is -40 to 85 °C (-40 to 185 °F and relative humidity of 5-95%, non-condensing. It must be installed at a location with vibration not exceeding 5 g, 10-500 Hz. It also has an operating shock rating of 20g when DIN rail is mounted and 30g when the CompactLogix system is directly mounted to the enclosure. The 1769-ECR must only be installed or removed when power is removed from the system. Removal or insertion under power will cause controller error and stoppage which is not desirable especially with a functional and actively operating system. To install the 1769-ECR, the bus lever must be lifted from its engaged position. Once done, align the ECR module along with the guide slots and gently push the ECR module until it is adjacent and in line with the CompactLogix module. Engaged the bus lever to connect the ECR module and close the FlexBus. If resistance is felt during the engagement of the bus lever, inspect if the ER is properly aligned to the module and the guide slot.

Allen Bradley's 1768-PB3 is a CompactLogix power supply. The 1768-PB3 is powered through the CompactLogix backplane. By using this backplane, the 1768-PB3 power supply is compatible with the 1768 and 1769 controllers, input/output modules, and power supply

Product specification

Model Number:1769-ECR

Product name: 1769-ECR

Payment :Paypal\TT\Western Union\ Trade Assurance

MOQ :1PCS

Package :Carton Package

Shipping By DHL\UPS\Fedex\EMS\TNT\Aramex

Service :24 Hours Online Service

Lead time :5-7 Days

Condition :100% Original

Original factory:Allen-Bradley1769-ECR In stock best price

Shipping term: TNT DHL FEDEX UPS

Warranty: 12 Months

Condition: Original & new

Our Main Products

Rockwell:Allen-Bradley1769-ECR

1) ControlLogix 1756 series controller

2) CompactLogix 1769 series controller

3) SLC 500 1747 1746 Series Controller

4) PLC-5 1771 1785 series controller

5) ProSoft MVI69/PS69/MVI56/MV194/MV171/MV146/3150

6) ICS TRIPLEX trusted system

FAQ For ：Allen-Bradley1769-ECR

· Q:Do you provide warranty for the goods?

· A:Yes, we provide one year warranty for all the goods from us.

· Q: Could you provide technology support?

· A: We're in this field more than 15 years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.

· Q: Does Online Union keeps goods in stock or only trading?

· A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.

Packing & Delivery

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.

Our Services

1、 All our products are new and original, and of good quality.

2、 Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.

4、 All inquiries will be valued and will reply in 24 hours.

5、 Fast shipping, and good after-sale service

6、 We will ship the items within 1-3 working days after the payment is received.

7、 Good package to protect the products.
