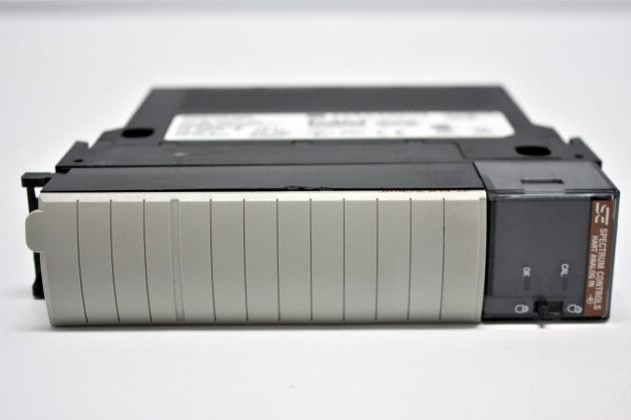

Allen-Bradley 1756SC-IF8H HART Analog Input/Output Module
Description For 1756SC-IF8H
The Allen-Bradley/Spectrum 1756SC-IF8H HART analog I/O module requires a single slot and it features 8-channel I/O with three terminals per channel. The unit is part of the ControlLogix system and it features a current range of 0 to 20 milliAmps or 4 to 20 milliAmps. The unit has a resolution of 16 to 21 bits and it uses the IEEE floating point 32-bit data format.
The 1756SC-IF8H analog I/O module is enabled for communication through HART networks and it requires only one slot for installation, like other components of similar dimensions. The unit operates in the current mode and it features the feed-through AIFM type. The 1756SC-IF8H module has 8 available channels for either input or output. It should be mentioned that each channel comes with three terminals. The accuracy of the unit is better than 0.1% and it uses the IEEE (32-bit, floating point) data format. The resolution of the module is from 16 to 21 bits and its current rating is 0 to 20 milliAmps or 4 to 20 milliAmps. In regard to environmental conditions, the unit features a relative humidity range of 5 to 95% (non-condensing) and an operating temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit).
Allen Bradley's 1768-PB3 is a CompactLogix power supply. The 1768-PB3 is powered through the CompactLogix backplane. By using this backplane, the 1768-PB3 power supply is compatible with the 1768 and 1769 controllers, input/output modules, and power supply
Product specification
Place of Origin: United States
Model Number： 1756SC-IF8H
Lead time: STOCK
Date code： NEW or used
Packaging: Standard Exportation Packing
Shipping by： DHL\UPS\Fedex\EMS\HK Post
module number: 1756SC-IF8H
Original factory:Allen-Bradley 1756SC-IF8H In stock best price
| Shipping term: TNT DHL FEDEX UPS |
| Warranty: 12 Months |
| Condition: Original & new |
