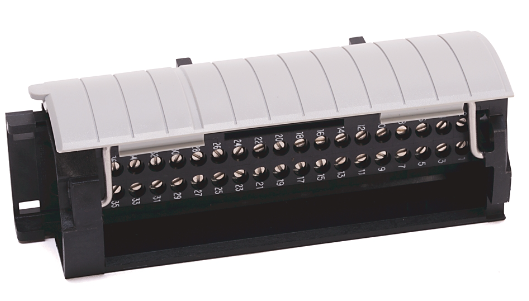

Allen-Bradley 1756-TBCH ControlLogix Removable Terminal Block

The 1756-TBCH removable terminal block is a 36-pin cage-clamp with standard housing (wiring arm depth of 2.5 mm. sq.). When terminating signal to the RTB, the required Torque is 0.5 Nm screw torque. It is recommended to use a screwdriver with width of 3.2 mm (1/8 in.) Screwdriver width. It has dimensions of 5.51 x 4.41 x 5.71 in. and weighs 0.3 pounds. For wiring, use solid or stranded copper wire rated at 90 deg. Celsius (194 °. Fahrenheit) or greater with a gauge 1.2 mm (3/64 in.) maximum insulation must be used. In case of a single wire connection, the wire size must be 0.33 - 2.1 mm sq. (22 - 14 AWG), and for a double wire connection, the wire size must be 0.33 - 1.3 mm sq. (22 - 16 AWG). On any single terminal, do not wire more than two conductors.

Catalog Numbers : 1756-OA8E,1756-OA16,1756-OA16I,1756-OB8,1756-OB8EI,756-OB8I,1756-OB16D,1756-OB16E,1756-OB16I,1756-OB16IEF,1756-OB16IEFS,1756-OB16IS, 1756-OB32, 1756-OC8, 1756-OG16, 1756-OH8I, 1756-ON8,1756-OV16E,1756-OV32E,1756-OW16I,1769-PA2,1769-PA2K,1769-PB2,1769-PB2K,1769-PA4,1769-PA4K,1769-PB4,1769-PB4K,1794-IE8,1794-IE8XT,1794-OE4,1794-OE4XT, 1794-IE12, 1794-OE12, 1794-IE4XOE2, 1794-IE4XOE2XT, 1794-IE8XOE4,1785-L40L,1785-L60B,1785-L60L,

Specification:,

Brand: Allen Bradley

Product Origin: USA

Warranty: 1 Year

Payment: T/T, Western Union

Condition: New with original package

Lead Time: 1-3days

Model: 1756-TBCH

Our Main Products:

Rockwell: Allen- Bradley

1) ControlLogix 1756 series controller

2) CompactLogix 1769 series controller

3) SLC 500 1747 1746 Series Controller

4) PLC-5 1771 1785 series controller

5) ProSoft MVI69/PS69/MVI56/MV194/MV171/MV146/3150

6) ICS TRIPLEX trusted system

FAQ & Contact:

Q: Are you a trading company or a manufacturer?

A: We are a trading company.

Q: What is your lead time?

A: It usually takes one to three days if we have it in stock. If the goods are not in stock, you need to negotiate.

Q: Does your company provide samples? Is it free or do you charge extra?

A: It depends on the goods you need and the quantity you order.

Q: What are your terms of payment?

A: 100%  T/T before shipping. If the quantity is large, we can negotiate.

Company Service:

1. Fast delivery (1-3 days will ship out for in-stock products)

2. Rich experience (More than 10 years of sales experience)

3. Large inventory ( Various brands and overseas warehouse)

4. Quality insurance ( Clear products condition with 1-year warranty)
