Allen-Bradley 1756-EN2T communication module

Allen-Bradley 1756-EN2T communication module

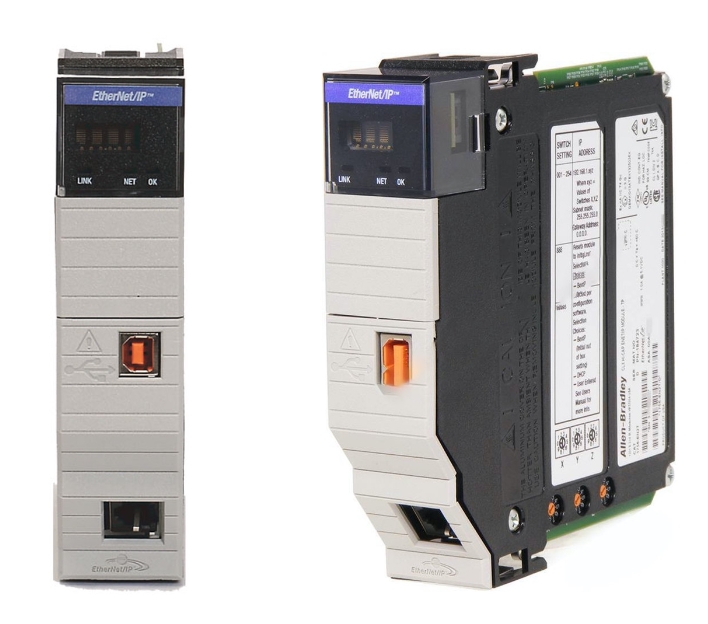

Allen Bradley 1756-EN2T is part of the ControlLogix communication module series. It is an EtherNet/IP (Ethernet Industrial Protocol) interface communication module. It supports general messaging, real-time I/O messaging, and information exchange for applications such as real-time control, time synchronization, and motion. 1756-EN2T also has CIP security standards, allowing for the simultaneous transmission of security and control data as well as diagnostic information. It uses advanced communication chips and physical media.

The 1756-EN2T supports 10 to 100 Mbps EtherNet/IP communication rates and uses Twisted pair copper media. It supports 256 Logix and 128 TCP/IP communication connections. It can support a maximum of 8 axes for integrated motion on the Ethernet/IP Network and draws 1 A current at 5.1 Volts DC. It has a maximum power dissipation of 5.1 Watts and thermal dissipation of 17.4 BTU/hour. It can be installed in any slot in the ControlLogix Chassis. For wiring, it uses unshielded RJ45, category 5, twisted-pair cable connectors to interface with the controller. To operate an EtherNet/IP network, parameters such as an IP address, Subnet masks, Gateway, etc. must be defined. The 1756-EN2T bridge has various functions like providing support for messaging, distributed I/O, and tags. It encapsulates messages within standard TCP/IP protocol. ControlNet and DeviceNet network protocols allow it to share a common application layer. It does not require any scheduling or routing table to store information. Other features include a protected mode, an electronic keying, a device level ring network, and a parallel redundancy protocol network support.

Product specification

Brand: Allen Bradley

Warranty :180 days

Origin: USA

Lead time: STOCK

Date code: NEW or used

Packaging :Standard Exportation Packing

Shipping by :DHL\UPS\Fedex\EMS\HK Post

module number :1756-EN2T

Company Service:

1. Fast delivery (1-3 days will ship out for in-stock products)

2. Rich experience (More than 10 years of sales experience)

3. Large inventory ( Various brands and overseas warehouse)

4. Quality insurance ( Clear products condition with 1-year warranty)
