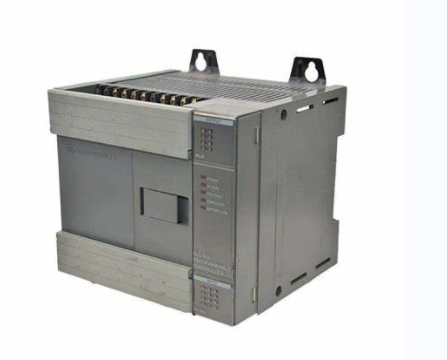

Allen-Bradley 1747-L20C fixed style hardware controller

Allen-Bradley1747-L20C  SLC 500 Fixed hardware style controller.

Description For1747-L20C

The Allen-Bradley L20C is a SLC 500 Fixed hardware style controller. This module features a 1K Instruction Capacity and bit execution of 4 microseconds and typical scan time of 8 milliseconds/1K. It has Twelve (12) 24VDC sink inputs, Eight (8) AC/DC Relay outputs. It has embedded high-speed inputs. This controller assembly requires 120 / 240VAC input voltage.

The 1747-L20C has 1K Instruction Capacity program memory that is capacitor backed-up. The embedded processor has a typical scan time of 8 milliseconds/1K with bit execution speed of 4 microseconds. The modules memory backup options includes use of a EEPROM or UVPROM module. It has built-in LED indicators composed of POWER, PC RUN, CPU FAULT, FORCED I/O, and BATTERY LOW.

Like most controllers in the series, it supports a selectable 8K, high-speed counter capability. The 1747-L20C’s operational voltage is between 100 and 240V AC with 50VA of operational power and it provides 1.25A fuse protection at a 120-240V AC voltage range. The 1747-L20C has a 1K instruction program memory and offers users either the EEPROM or UVPROM backup option. Its maximum load-dependent delay time between scans is 20-700ms. It uses the base DH-485 communication port which acts only in the receiving capacity (slave) for communication and it displays the controller’s status through the LED indicators. The 1747-L20C offers the standard NEMA ICS 2-230 noise immunity rating and it is UL and CSA-certified. When operational, the 1747-L20C has a 30G shock rating at a 10-500Hz withstand. Its functional temperature range is between 0 and 60 0C at 5-95% non-condensing humidity.

Product specification

Model Number:1747-L20C

Product name:1747-L20C

Payment :Paypal\TT\Western Union\ Trade Assurance

MOQ :1PCS

Package :Carton Package

Shipping By DHL\UPS\Fedex\EMS\TNT\Aramex

Service :24 Hours Online Service

Lead time :5-7 Days

Condition :100% Original

Original factory:Allen-Bradley1747-L20C In stock best price
