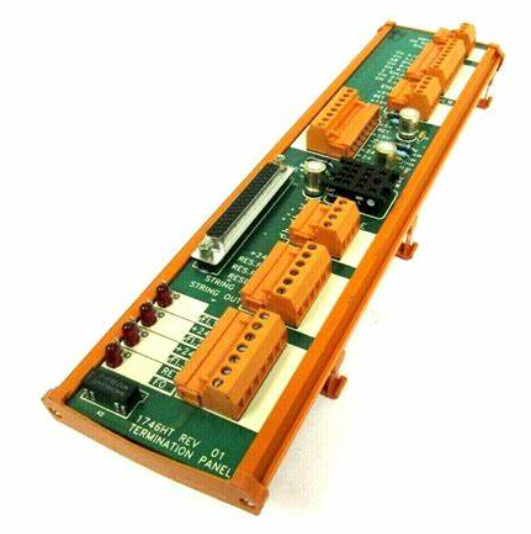

Allen Bradley 1746-HT termination panel consists of the driver inside the driver, the driver circuit, and the shield.
Description For 1746-HT
The 1746-HT termination panel consists of a drive within a drive, Drive Return, and a Shield. The Panel's encoder has Channel A Hi/Low, an AB Shield, Channel B Hi/Low, a Z Shield and Channel Z Hi/Low. The Encoder power has a +5 V node, Return, +15 V node and a Shield. The Exit power of the panel consist of +5 V, Return, +15 V, -/+ Return, -15 V, +24 V, +24 V Return and a EGND. It has an axis that can be linear or rotary. The 1746-HT has a drive enable and ESTOP that consists of +24 V, 2 RES. PB, RESET, STRING IN/OUT. The panel has a FAST I/O that consists of FAST IN. 1, +24 V, FAST IN. 2, +24 V, FAST IN. 3, Return, FAST Output. 1 functions.
AB 1756-IRT9IPLC module, programmable controller, CPU module, IO module, DO module, AI module, DI module network communication module, Ethernet module, motion control module, analog input module, analog output module, digital input module, digital output module, redundant module, power module, relay output module, relay input module, processor module, etc The scale of the air system represents the PLC control capability, depending on how many inputs it can handle.
Allen Bradley's 1768-PB3 is a CompactLogix power supply. The 1768-PB3 is powered through the CompactLogix backplane. By using this backplane, the 1768-PB3 power supply is compatible with the 1768 and 1769 controllers, input/output modules, and power supply
Product specifications
Place of Origin: Original
Model Number: 1746-HT
Product name: ControlNet Scanner Module
Type: 1756-CNB
Condition: 100% Original
Warranty: 1 Year
Shipping term :TNT DHL FEDEX EMS UPS
Original factory:Allen Bradley 1746-HT In stock best price
| Shipping term: TNT DHL FEDEX UPS |
| Warranty: 12 Months |
| Condition: Original & new |
