Allen Bradley 1746-FIO4V IO Modules SLC 500 Processors

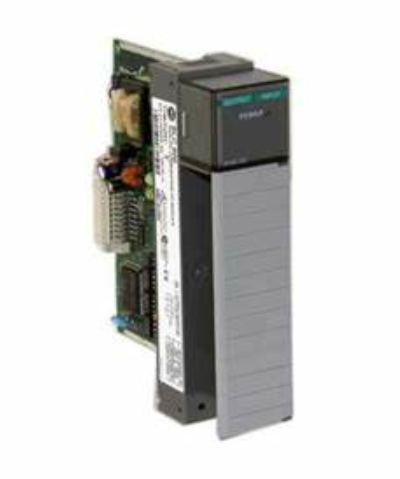

Description For 1746-FIO4V
The Allen-Bradley 1746-FIO4V SLC 500 fast analog combination module has Four (4) channels. In particular, it has Two (2) fast analog, differential voltage or current input channels, which are selectable by channel, and Two (2) voltage outputs which are grouped together. Its input channels have a 0-20 mA input range, a maximum absolute input voltage of +/- 7.5V DC or of 7.5V AC RMS, a maximum absolute input current of 0-30 mA. The output channels of this module come with -10 to +10VDC -1 LSB. The 1746-FIO4V also comes with field wiring to a backplane isolation of 500V DC.
This module makes use of a 16-bit two’s complement binary communication. The backplane current ratings are 55 mA at 5 V and 150 mA at 24V while the step response time of the 1746-FIO4V is 100 milliseconds in and 2.5 milliseconds out at 95%, while its update time is 512 milliseconds. Its resolution is 12 bits in and 14 bits out, and its bandwidth is 7 KHz.
This module comes with a LED status indicator. 1746-FIO4V uses a chassis mount and it is enclosed in an open-type enclosure, with the 1746-FIO4V module compatible with a 14 AWG connecting cable. Its non-condensing relative humidity is 5-95%.
The Allen-Bradley 1746-FIO4V is a Fast Analog Combination module that features Two (2) Current input and Two (2) Voltage output channels. This module is exclusively used for the SLC 500 controller platform from Rockwell Automation.
The module’s input current range is 0 to 20 mA nominal and a maximum of 0-30mA. With each channel configurable Electrical Standard signal of 0-20 mA or 4-20 mA. If configured for Voltage input, input voltage range is 0 to 10VDC with configurable standard signals of 0 to 5VDC, 1 to 5 VDC and 0 to 10VDC. This analog input represents the Process Variable (PV) of the process whether Open loop, Closed Loop or monitoring loop. Typically, the received analog signal is conditioned to convert to engineering units which is more popularly known as Scaling.
Allen Bradley's 1768-PB3 is a CompactLogix power supply. The 1768-PB3 is powered through the CompactLogix backplane. By using this backplane, the 1768-PB3 power supply is compatible with the 1768 and 1769 controllers, input/output modules, and power supply
Product specification
Model Number :1746-FIO4V
Brand Name :Original
Model name :1746-FIO4V
Product Type: PLC Module
Condition :100% New Original
Series: PLC
Package :100% Original Package
Delivery time: 3-5 Days
MOQ :1 Piece
Original factory:Allen-Bradley1746-FIO4V In stock best price
Shipping term: TNT DHL FEDEX UPS |
Warranty: 12 Months |
Condition: Original & new |
