ABB IMMFP12 Multi-function Processor Module
Technical specifcations for IMMFP12
Microprocessor: 32-bit processor (16-bit external bus) running at 16 MHz
IMMFP12: ROM: 512 kbytes; RAM: 512 kbytes; NVRAM: 256 kbytes
Power Requirements: +5 VDC at 2 A maximum
Power Dissipation: 10 W maximum
Serial Ports:Two RS-232-C ports, or one RS-485 and one RS-232-C port, all of which link signals at a rate of up to 19.2 Kbaud (Requires NTMP01 or NIMP01 termination devices for connection to these ports.)
Station Support: Sixty-four 40-kbaud serial stations (IISAC01) or Eight 5-kbaud serial stations (NDCS03 or NDIS01)
Redundant Communication Link: 1 Mbaud serial link
Programmability: Function codes, C, Basic, Batch 90, Ladder, and user-defined functions
Dimensions: 35.56 mm wide (1.40 in.), 177.80 mm high (7.00 in.), 298.45 mm long (11.75 in.)
Mounting: Occupies one slot in a standard INFI 90 OPEN module mounting unit.
Environment
Ambient Temperature: 0° to 70° C (32° to 158°F)
Relative Humidity:5% to 95% up to 55° C (131°F)(non-condensing); 5% to 45% above 55° C (131°F)(non-condensing)
Atmospheric Pressure: Sea level to 3 km (1.86 mi)
Air Quality: Non-corrosive
More Products In Stock:
| DCP02 | DCP10 | DCU30/7 | DDI01 | DDO01 |
| DI685 3BDS005833R1 | DI801 3BSE020508R1 | DI803 3BSE022362R1 | DI810 3BSE008508R1 | DI811 3BSE008552R1 |
| DI821 3BSE008550R1 | DI920 | DLM01 | DLM02 | DO620 3BHT300009R1 |
| DO630 3BHT300007R1 | DO801 3BSE020510R1 | DO810 3BSE008510R1 | DO818 | DO820 3BSE008514R1 |
| DO910 | DO930 | DP640 3BHT300057R1 | DP910 | DPW02 |
| DRA02 | IIMCL01 | IMASI03 | IMASI23 | IMASO01 |
| IMASO11 | IMDSI12 | IMDSI14 | IMDSI22 | IMDSM04 |
| IMDSO14 | IMFEC11 | IMFEC12 | IMMFP01 | IMMFP02 |
| IMMFP12 | IMMPI01 | IMRIO02 | IMSED01 | IMSET01 |

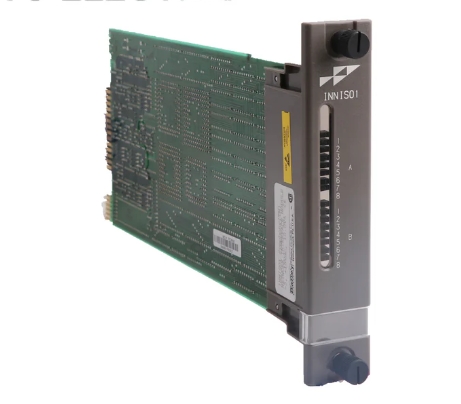

| INICT03A | INIIT13 | INNIS01 | INNIS11 | INNPM22 |
