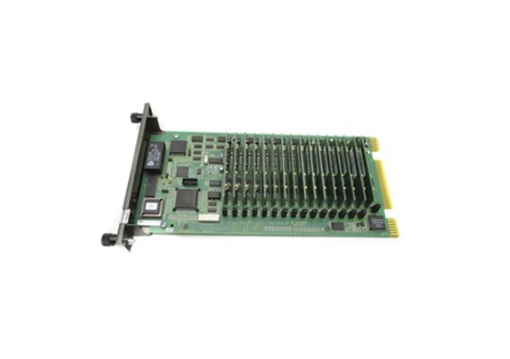

ABB IMASO11 Analog Output Slave Module

ABB IMASO11 Analog Output Slave Module

The ABB IMASO11 is a versatile analog output module that can be used to output analog signals from a Symphony Plus controller. It is a small, lightweight device that is easy to install and use. The IMASO11 supports 4 analog outputs with a resolution of 16 bits. It can be used with a variety of sensors and actuators.

Technical specifcations for IMASO11

Gross weight: 0.612 kg

Net weight: 0.27 kg

Dimensions: 73.66 x 358.14 x 271.78 mm

Operating temperature range: -20 to 60 degrees Celsius

Storage temperature range: -40 to 85 degrees Celsius

Humidity: 5 to 95% non-condensing

Analog Outputs: 14 channels, 1 to 5 VDC and 4-20MA

D/A Resolution: 10 bits for analog outputs

Output Accuracy: ≤0.15%(voltage mode); ≤0.25%(current mode)

Output Load: 750 ohms maximum(current mode); 22 kilohms minimum(voltage mode)

Overvoltage category: Ill for outputs per ANSI/ISA S82.01-1994

Current Limiting: Short circuit protection 50 mA(nominal)output current limit

Power Requirements

Voltage:

+5 VDC +5%

+15 VDC +5%

-15 VDC +5%

+24 VDC+10%(from termination unit/termination module)

Current Consumption(Typical):

250 mA (+5 VDC)

100 mA (+15 VDC)

90 mA(-15 VDC)

310 mA(+24 VDC)

Power Dissipation(Typical):

1.5 W at +5 VDC

2 W at +15 VDC

1.75 W at -15 VDC

8 W at +24 VDC

Features

Supports 4 analog outputs

Resolution of 16 bits

Easy to install and use

Compatible with Symphony Plus controllers

Wide range of supported sensors and actuators
