Schneider 9 Series Integrated Terminal Distribution Circuit Breaker Series

From complex to simple applications, we can use programmable logic controllers (PLCs) and programmable automation controllers (PACs) to meet your needs

1、Overview

The 9 Series comprehensive terminal distribution circuit breaker series is renowned for its outstanding performance and wide range of applications. This series of circuit breakers not only has efficient electrical protection functions, but also features easy installation, maintenance, and upgrading, providing users with great convenience.

2、Product Features

1. Efficient protection: The 9 Series circuit breaker adopts advanced protection technology, which can quickly respond to abnormal situations in the circuit, such as overload, short circuit, etc., effectively preventing electrical fires and equipment damage.

2. Modular design: This series of circuit breakers adopts modular design, and users can choose different modules to combine according to their actual needs to meet different distribution requirements.

3. Easy to install and maintain: The installation process of the 9 Series circuit breaker is simple and fast, and its modular design also facilitates later maintenance and upgrade work.

4. Interconnectivity: Some 9 Series circuit breakers support interconnectivity, which enables data exchange and remote control with other smart devices, improving the intelligence level of the distribution system.

3、Product series

In the 9 Series comprehensive terminal distribution circuit breaker series, there are multiple sub series and specific product models, such as Resi9, Acti 9, Multi9, etc. These sub series and models each have their own characteristics, suitable for different application scenarios and distribution needs.

1.Resi9: A miniature circuit breaker product designed specifically for home users, with a beautiful new design and remote connection function, providing reliable protection for home electrical safety.

2.Acti 9: Low voltage terminal distribution products widely used in civil, commercial, and industrial fields, providing outstanding distribution performance and space optimization.

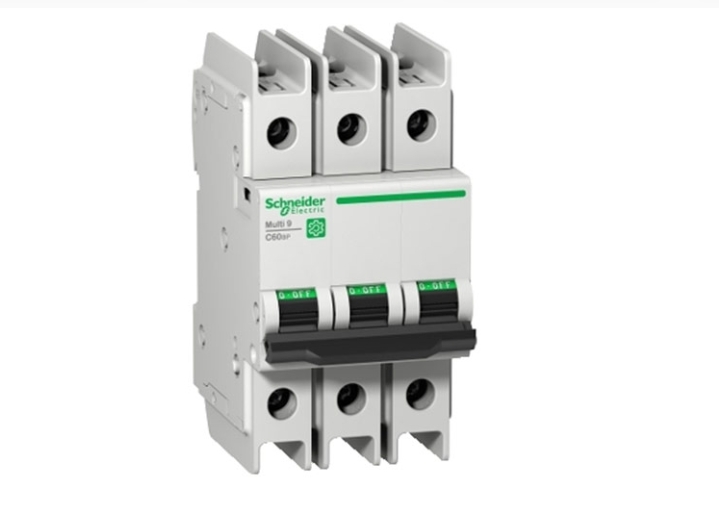

3.Multi9: A global product designed for equipment manufacturers (OEMs) to meet the main standards of industry applications, providing complete protection, signaling functions, and accessories through modular devices.

4、Application scenarios

The 9 Series comprehensive terminal distribution circuit breaker series is suitable for various distribution scenarios, including households, commercial buildings, industrial sites, etc. Whether used to protect individual electrical equipment or the entire distribution system, this series of circuit breakers can provide reliable protection and stable power supply.

5、Advantages and disadvantages

advantage:

High reliability: As a leading electrical brand in the industry, Schneider Electric's 9 Series products have high reliability and stability, ensuring the continuity and safety of power supply.

Innovative features: This series of products continuously introduces innovative technologies and designs, such as remote control and management functions, modular design, etc., which improves the intelligence level and user experience of the products.

Widely applicable: 9 Series products are suitable for various application scenarios and can meet the distribution protection needs of different fields and industries.

Disadvantages:

High price: As a high-end product series of a well-known brand, the price of the 9 Series products is relatively high, which may increase the purchasing cost for users.

Technical threshold: Some high-end products have complex functions and require users to possess certain professional knowledge and operational skills in order to fully leverage their performance advantages.

Summarize

SCHNEIDER's 9 Series comprehensive terminal distribution circuit breaker series is a high-quality product that integrates efficient protection, modular design, easy installation and maintenance, and interconnectivity. This series of circuit breakers has won widespread recognition in the market for its excellent performance and wide range of applications. Both home users and professionals in the business and industrial fields can find products that meet their needs in this series.

Model

Acti9 iC60

Acti9 Vigi iC60

Acti9 iID

Acti 9 iC 60 RCBO (2P，3P,4P)

Acti9 iDPN Vigi

Acti 9 iSW&SW

Acti9 iARC

Acti9 iDPN N Arc

Acti9 iCT

Acti9 iPRD

Acti9 iPRC,iPRI,iPRE
