The 1336 PLUS II drive family, designed to satisfy a variety of speed control applications, is an excellent example of a small, high-performance, adjustable frequency AC drive with superior sensor-less vector control. Prominent for its uniform architecture, adaptable control interfaces, and wide range of device connection choices, the 1336 PLUS II series guarantees smooth integration, simple installation, and uncomplicated operator training. These drives are positioned as a dependable option for contemporary applications thanks to these qualities, which together improve maintenance efficiency. This series is unique in the industry because it provides strong performance and user-friendliness that satisfy the needs of modern industrial settings. In this article, we will discuss some of the properties that this drive series holds, and then we will discuss some of the modules that are a part of this series.

Voltage Ranges and Power Ratings

The 1336 PLUS II drives support voltage ranges of 200 to 240 Volts AC, 380 to 480 Volts AC, and 500 to 600 Volts AC. Power ratings vary from 0.37 to 448 kilowatts (0.5 to 600 horsepower). Due to their broad range of power and voltage capabilities, they are appropriate for a variety of industrial applications.

Dimensions of Frames

Nine distinct frame sizes are available for the drives: A1, A2, A3, A4, B1, B2, C, D, and E. These frame sizes allow you to select the ideal drive for particular applications by guaranteeing compatibility with varying installation locations and power needs.

Torque Abilities

Both constant and variable torque capabilities are available with the 1336 PLUS II drives. Because of their versatility, the drives can meet the demands of applications that need variable torque under various load circumstances and those that need constant torque.

Programmable Pulse Width Modulation

These drives use an adjustable output voltage and configurable pulse width modulation (PWM) frequency. This feature makes it possible to manage torque and speed very well, allowing operators to precisely adjust the drive’s performance to suit changing load needs.

Fault Detection and Overload Protection:

These drives have built-in fault detection and overload protection as standard features. These features enable operators to report faults and avoid problems in real time. They send out plain-text diagnostic messages and alerts to notify them of problems so they may take immediate remedial action.

Options for Motor Control

The drives include sensorless vector control (SVC) and conventional Volts per Hertz control for motor control, together with programmable Volts per Hertz curve. These upgrades guarantee outstanding torque and speed performance and provide a beginning torque increase of up to 250%.

Configurable I/O Interfaces

The variable I/O interfaces of 1336 PLUS II drives enable customization in accordance with particular application requirements. This flexibility improves the drive’s overall operating efficiency by facilitating better integration into a variety of control systems.

Communication Modules

The drives accommodate several connection modules, such as DeviceNet, Enhanced DeviceNet, RS-232/422, and Remote I/O modules. These modules ensure smooth operations by providing seamless communication and data exchange between the drives and other system components.

Control Interface Modules

Encoder interfaces are optional, and control interface modules with and without them are offered. These modules expand the drive’s control capabilities and improve its capacity to offer accurate motor control, meeting the demands of intricate motion control applications.

The 1336 PLUS II Drives are used in various industrial settings where dependable and accurate motor control is crucial. These are a few such usage cases:

Pumps and Fans:

These drives are often employed in industrial operations, water treatment facilities, HVAC systems, and other systems to regulate the speed of pumps and fans. Varying the motor speed can maximize energy efficiency.

Conveyors and Material Handling:

The 1336 PLUS II Drives control conveyor belts and material handling systems in factories, warehouses, and distribution centers. They provide seamless motion and prevent abrupt beginnings or endings.

Mixers and Agitators:

These drives provide exact control over motor speed to accomplish desired outcomes in operations involving mixing, blending, or agitation (such as food preparation and chemical processing).

Machine Tools:

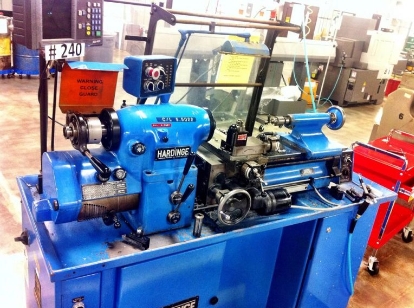

These drives are useful for CNC, lathe, and milling machines. They allow precise spindle speed control, which enhances machining quality and lessens tool wear.

Centrifuges:

Centrifuges are used in industrial, medicinal, and laboratory contexts to separate materials according to their densities. The rotational speeds of these drives must be consistently maintained for effective separation.

Crushers and Grinders:

Mining, quarrying, and material processing equipment (such as crushers and grinders) depend on these drives for the best possible motor performance during crushing and grinding operations.

Conclusion

In conclusion, with its unmatched sensor-less vector control and consistent design that makes installation and operator training easier, the Allen-Bradley 1336 PLUS II drive family is an outstanding illustration of cutting-edge technology in contemporary industrial applications.  These drives are manufactured for different industrial requirements, supporting voltage ranges of 200 to 600 Volts AC and power ratings ranging from 0.37 to 448 kW. They provide a range of installation conditions, and power needs thanks to their nine frame sizes. Functionalities such as defect detection, overload protection, and programmable pulse width modulation (PWM) improve operating efficiency. Several communication modules and flexible I/O interfaces ensure seamless system integration. Their adherence to international standards emphasizes their trustworthiness. The 1336F-A007-AA-EN-HAS1-LA2-L6 and 1336F-A007-AA-EN-GM1-HCSP models are examples of the series’ exceptional performance in centrifuges, crushers, pumps, fans, conveyors, mixers, machine tools, and other applications. The 1336 PLUS II drives are reliable, easy-to-use solutions that satisfy modern industrial needs.
