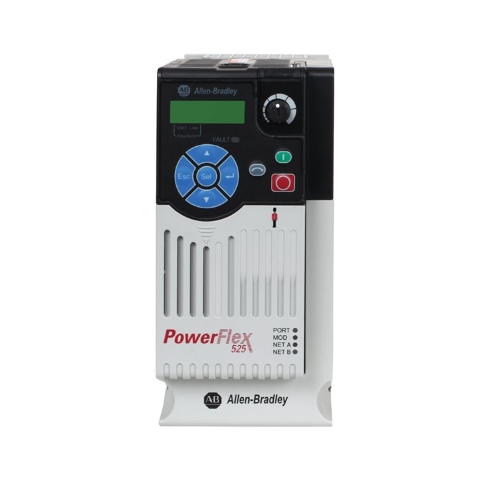

In the vast landscape of Variable Frequency Alternating Current (AC) drives in industrial automation, the PowerFlex 527 was developed to integrate seamlessly with different industrial automation systems. These drives are well regarded for their adaptability and safety characteristics. In this article, we will start by exploring the technical specifications of the series as a whole and then move to the individual drives/ modules this series offers.

Some of the technical specifications of the series as a whole

• Safe Torque-Off: This feature reduces the possibility of harm or damage to equipment by immediately cutting off torque production when a safety circuit is activated.

• Certifications: Complying with worldwide safety and quality laws, certifications from RCM, CE, TUV, KCC, and EAC standards guarantee compliance and enable smooth connection with different automation systems.

• Power Ratings: A wide range of power ratings, including 0.4 to 22 kilowatts or 0.5 to 30 horsepower, provides the user with options to precisely and efficiently satisfy a variety of application needs.

• Voltage Compatibility: The drives of this series are designed to operate on voltages between 100 and 600 volts AC.

• Twin Ethernet Ports: Equipped with twin Ethernet ports, this feature ensures enhanced connectivity and allows various network topologies to be used for more operational flexibility.

• Frame Types and Mounting Options: One can choose from five different kinds of frames. For the D and E frames, there are screw mounting choices as well as DIN rail or screw mounting options. This allows for flexibility in installation and positioning.

• Altitude Limit: A maximum installation altitude of 1000 meters is advised to provide optimum performance and dependability in various climates and elevations.

• Operating Temperature Range: This series’ operational temperature range is -20 to 50 degrees Celsius. The wide operational range guarantees steady performance even in somewhat harsh climatic circumstances.

• Relative Humidity Range: This series’ drives enable operation within the range of 0-95% relative humidity.

• Stop Modes Supported: This feature improves operating flexibility and safety in industrial applications by supporting a variety of stop modes, such as disable, coast, and current deceleration.

• Supported Control Algorithms: This AC drive series provides different control algorithms that help in accurate frequency, velocity, and position control. Control modes include basic Volts per Hertz control, sensor-less vector control, and specific modes like economizer and fan/pump Volts per Hertz control.

Some of the modules, along with their properties that this series has to offer, are listed below

25C-B011N104

The PowerFlex 527 drive model 25C-B011N104 is a versatile and functional choice for your automation requirements. This module, also a Variable frequency AC drive, is appropriate for various applications that demand speed modulation and standard motor control.

• It supports vertical and horizontal orientations and allows DIN rail or direct subpanel attachment with its Frame A design and IP20 / NEMA Open Type enclosure.

• Volts/Hertz Control, Permanent Magnet Motor Control, Sensor-less Vector Control (SVC), and Closed-Loop Velocity Vector Control are examples of control functions that may be configured.

It simplifies analog control loop administration by acting as a (PID) controller. Operating at 200-240 VAC, 3-Phase input voltage with 13.8 Amperes input current, and providing 0-230 VAC, 3-Phase output voltage, the 25C-B011N104 drive efficiently meets varied power demands with precision.

25C-A2P5N104

When it comes to finding the highly efficient ideal PowerFlex 527 drive for your automation needs, the model 25C-A2P5N104 stands out above the others. This 0.5 Horse Power, 2.5 A drive has twin ports for improved network connection and integrated safety features.

• It provides accurate control and dependability with an input single-phase 200–240V AC voltage and a power consumption of 0.4KW.

• It has closed-loop position and velocity vector control systems, Sensor-less Vector Control (SVC), and performance speed accuracy of ±0.5% throughout a 100:1 speed range.

• It also has strong protective features, such as a 100,000A short-circuit fault limit and Class 10 motor overload protection.

Installation is flexible and easy due to its IP20-rated enclosure, DIN rail or screw mounting choices, and compact design. The 25C-A2P5N104 drive is certified by RCM, CE, cUL-us, KCC, EAC, and ODVA, ensuring compliance and dependability for various industrial applications.

25C-D017N114

The 25C-D017N114 module is a dependable option if you’re searching for the highly efficient PowerFlex 527 drive for your automation needs. This module is designed for industrial use and provides accurate speed, torque regulation, and motor control.

• Ensuring efficient functioning, it operates within a 3-phase, 380-480VAC range of input supply voltage and has an output frequency range of 0 to 590 Hertz.

• With a 7.5 kW (10.0 HP) power rating for both standard and heavy-duty use, it has an astounding 97.5% efficiency.

• It provides flexible connection choices with different I/O options, including discrete, analog, relay, and opto-coupler outputs.

• This AC drive integrates seamlessly with ControlLogix, GuardLogix, and CompactLogix Programmable Automation Controllers (PAC) utilizing Studio 5000 Logix Designer.

Its versatile mounting choices via panel or DIN rail and IP20 NEMA open-type enclosure ensure reliability and simplicity in industrial situations. It also has an integrated keypad, an LCD human interface module, and an Ethernet/IP dual port for improved usability and communication.

25C-E3P0N104

The 25C-E3P0N104 is an industrial-grade PowerFlex 527 drive that is a great option for your automation needs. Its IP20 NEMA (Open) enclosure and Compact A-sized frame guarantee longevity on industrial floors.

• It produces two horsepower while running at 600V AC in three phases and provides a smooth connection with its EtherNet IP (Dual Port) communication.

• It is designed for industrial settings and prioritizes efficiency and simplicity over EMC filtration. It reduces manual reconfiguration and smoothly interacts with Logix PACs, making it ideal for simple induction motor speed control.

In order to ensure prompt restarts and minimize wear, the safe torque-off function quickly cuts motor power during safety triggers, improving operating safety. Its integrated safety features simplify wiring, maximize installation space, and protect workers and equipment assets.

Conclusion

In conclusion, the PowerFlex 527 series provides an extensive selection of variable frequency AC drives designed to meet the demands of industrial automation. These drives provide accurate motor control and speed modulation due to their smooth interaction with Logix Programmable Automation Controllers. Their versatility and safety characteristics are highlighted by key technical requirements such as Safe Torque-Off, certifications, power ratings, voltage compatibility, dual Ethernet ports, frame kinds, altitude limit, operating temperature and humidity ranges, and support for stop modes. With unique characteristics and capabilities, each module in the series—the 25C-B011N104, 25C-A2P5N104, 25C-D017N114, 25C-E3P0N104, and 25C-V4P8N104, for example—satisfies a particular set of automation needs. These drives provide dependability, efficiency, and ease of installation for different industrial settings, ranging from basic motor control to network connection and sophisticated safety features. The PowerFlex 527 series, which prioritizes functionality and performance, offers a flexible answer to problems in industrial automation, guaranteeing reliability and excellent performance in various operating conditions.
