The Allen Bradley Stratix 2000 switch is an industrial grade unmanaged switch produced by Rockwell Automation, widely used in the field of industrial automation. The following is a detailed introduction to the switch:

1. Product Overview

The Allen Bradley Stratix 2000 series switches offer a variety of port combinations, including copper and fiber ports, to meet the needs of different industrial applications. These switches are characterized by high performance, high reliability, and easy installation, making them suitable for small to medium-sized applications that require reliable network connectivity.

2. Main characteristics

• Flexible port combination: Provides 5 to 18 copper and fiber port combination solutions, using SFP (small form factor pluggable) modules to enhance network flexibility.

• High speed ports: Supports 100 MB and 1 Gb port speeds to meet network performance requirements.

• Extended temperature range: The selected version has an extended temperature range of -40 ° C to 75 ° C, suitable for various harsh environments.

• Compact design: ensures maximum cabinet space and facilitates installation within limited space.

• Plug and play: simplifies installation and integration processes, reducing configuration time.

• Broadcast storm protection: prevent unnecessary network communication and improve network stability.

• Stable shell: IP30 grade metal shell design, suitable for industrial application environments.

• Dual power input: helps to maximize the normal operation time of devices in harsh environments.

3. Product model

The Allen Bradley Stratix 2000 series switches include multiple models, such as 1783-US5T, 1783-US8T, 1783-US16T, etc. Taking 1783-US16T as an example, this model of switch has 16 Fast Ethernet (FE) ports, supports plug and play operation, and has broadcast storm protection function.

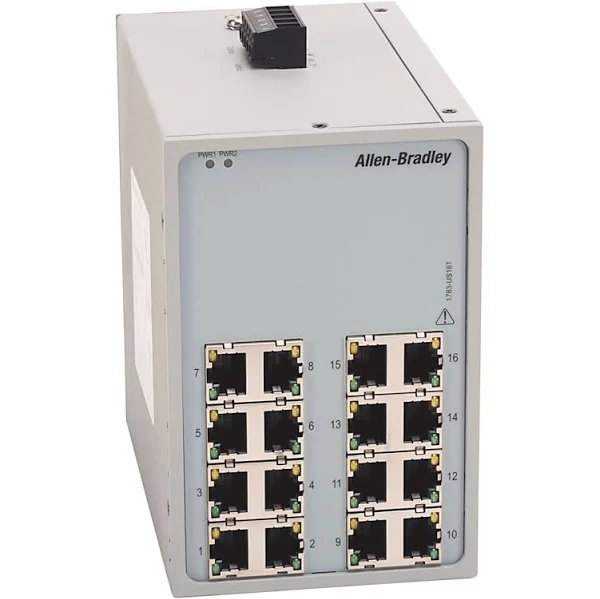

1783-US16TA | Allen-Bradley Stratix 2000 Switch, Unmanaged, 16 Copper Ports

Allen Bradley 1783-US16TA Stratix 2000 Unmanaged EtherNet Switch, Ports per Module: 16; Copper Ports: 16 x 10/100 Full/Half Duplex, Autonegotiate; Power Requirements: 20V AC/ 24V DC; Input Power Range: 10-24V AC, 10-35V DC; Inrush Current, Max: 2.2A; Power consumption, Max: 4 W (6VA), Current 400 mA at 10V DC Max; Enclosure Type Rating: Meets IP20

Description

The Allen-Bradley 1783-US16TA Stratix 2000 Switch is an unmanaged network switch with 16 copper ports. This robust switch ensures seamless and reliable connectivity in industrial Ethernet networks, simplifying deployment and providing a cost-effective solution for expanding network infrastructure.

Technical Specifications

Brand: Allen-Bradley

IP-rating: IP20

Part Number: 1783-US16TA

Ethernet: Yes

Manageable: No

Mounting method: DIN rail (top hat rail)

Number of combination-Ports RJ45/SFP: O

Number of ports 10/100 Mbps RJ45: 16

Number of ports 10/100/1000Mbps RJ45: O

Information About 1783-US16TA

The Allen-Bradley 1783-US16TA Stratix 2000 Switch is a high-performance unmanaged network switch designed for industrial Ethernet applications. With 16 copper ports, this switch provides a reliable and cost-effective solution for expanding network infrastructure in industrial environments.

The unmanaged feature simplifies deployment, making it an ideal choice for applications where ease of use and straightforward operation are paramount. The 1783-US16TA ensures plug-and-play connectivity, eliminating the need for complex configuration.

Equipped with 16 copper ports, this switch supports fast and reliable data transfer within the network. The copper ports are well-suited for connecting to devices such as PLCs, HMI panels, and other industrial equipment, offering seamless integration into control systems.

The robust design of the Stratix 2000 Switch ensures durability in harsh industrial environments. Its compact form factor optimizes space utilization in control cabinets, making it suitable for a variety of industrial applications.

4. Application scenarios

The Allen Bradley Stratix 2000 switch is widely used in industrial automation, electrical automation, chemical mining, automotive electronics, computer and peripheral equipment, energy applications, video and image processing, digital audio, communication and telecommunications, and other fields. They provide reliable and efficient network connectivity solutions for these fields.

5. Summary

The Allen Bradley Stratix 2000 switch is a powerful and stable industrial grade unmanaged switch. It has been widely used in the field of industrial automation due to its flexible port combination, high-speed port speed, extended temperature range, and stable housing design. At the same time, users should pay attention to complying with electrical and network protocol specifications during use to ensure the safe and stable operation of the equipment.
